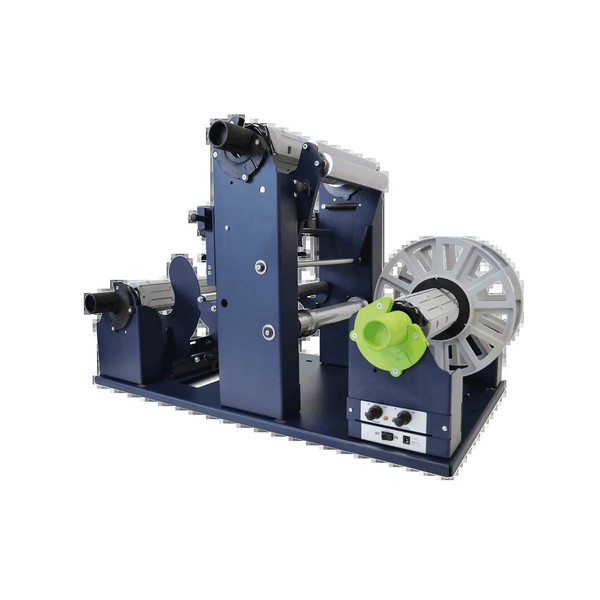

DPR Matrix Remover & Slitter (MCH100MTX17, MTX25, MTX35)

Century Systems, Inc.

DPR Matrix Remover & Slitter (MCH100MTX17, MTX25, MTX35)

Offline matrix removers with a built-in slitter: load a printed, pre-die-cut roll and the unit strips the waste, slits, and rewinds the finished labels face out on a 3″ (76mm) core. Three widths: 6.69″ (170mm), 8.86″ (225mm) and 13.77″ (350mm).

Media up to 13.77″Slitter includedRows from 0.75″CE, RoHS

Comprehensive Specifications

General

Minimum slitting width 0.75″ (19mm)
Slitter module Included on all three
Core 3″ (76mm)
Output Finished labels rewound face out only
Tension Electronic clutch, with ultrasonic sensors holding tension constant
Agency certifications CE, RoHS
MCH100MTX17

Media width Up to 6.69″ (170mm)
Roll diameter Up to 7.87″ (200mm)
Slitting blades Up to 6 (3 included)
MCH100MTX25

Media width Up to 8.86″ (225mm)
Roll diameter Up to 10″ (250mm)
Slitting blades Up to 8 (4 included)
MCH100MTX35

Media width Up to 13.77″ (350mm)
Roll diameter Up to 10″ (250mm)
Slitting blades Up to 12 (6 included)

Available Model Numbers

Part Number Configuration
MCH100MTX17 Matrix remover and slitter Max. media width 6.69”
MCH100MTX25 Matrix remover and slitter Max. media width 8.86”
MCH100MTX35 Matrix remover and slitter Max. media width 13.77”
Century Systems stocks and supports DPR Labeling equipment for our resellers. Contact us for availability, configuration and lead times.
